- Large specific surface area and high dust holding capacity;
- High filtration efficiency and low pressure drop;
- The fold distance is uniform;
- Stable airflow;
- Excellent air tightness;
- Temperature resistance: 100℃～350℃;
- Moisture resistance(relative humidity)≤100%RH.

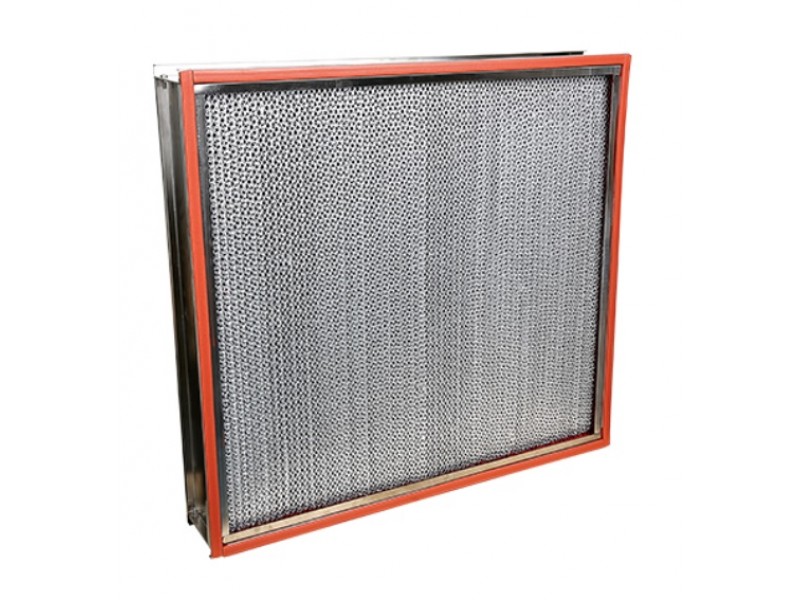

HT Deep Pleat HEPA filter - Box type 150D | ||||||||
Model | Size (mm) | CMH | I.N.P (Pa) | F.N.P (Pa) | Filter object(μm) | EFF. (%) | Filtration Class | Filtration Area (m2) |
RT-HTDP2803-10 | 305*610*150 | 500/700 | <100/130 | <350/500 | 0.3 | 85≤E<95 | E10 | 4.25 |
RT-HTDP8803-10 | 610*610*150 | 1000/1500 | <100/130 | <350/500 | 0.3 | 85≤E<95 | E10 | 7.97 |
RT-HTDPB803-10 | 1220*610*150 | 2000/2800 | <100/130 | <350/500 | 0.3 | 85≤E<95 | E10 | 15.68 |
RT-HTDPB003-10 | 1220*915*150 | 2800/3800 | <100/130 | <350/500 | 0.3 | 85≤E<95 | E10 | 23.60 |
RT-HTDP2803-11 | 305*610*150 | 500/700 | <120/150 | <350/500 | 0.3 | 95≤E<99.5 | E11 | 4.25 |
RT-HTDP8803-11 | 610*610*150 | 1000/1500 | <120/150 | <350/500 | 0.3 | 95≤E<99.5 | E11 | 7.97 |
RT-HTDPB803-11 | 1220*610*150 | 2000/2800 | <120/150 | <350/500 | 0.3 | 95≤E<99.5 | E11 | 15.68 |
RT-HTDPB003-11 | 1220*915*150 | 2800/3800 | <120/150 | <350/500 | 0.3 | 95≤E<99.5 | E11 | 23.60 |
RT-HTDP2803-12 | 305*610*150 | 500/700 | <140/170 | <350/500 | 0.3 | 99.5≤E<99.95 | E12 | 4.25 |
RT-HTDP8803-12 | 610*610*150 | 1000/1500 | <140/170 | <350/500 | 0.3 | 99.5≤E<99.95 | E12 | 7.97 |
RT-HTDPB803-12 | 1220*610*150 | 2000/2800 | <140/170 | <350/500 | 0.3 | 99.5≤E<99.95 | E12 | 15.68 |
RT-HTDPB003-12 | 1220*915*150 | 2800/3800 | <140/170 | &
| ||||
