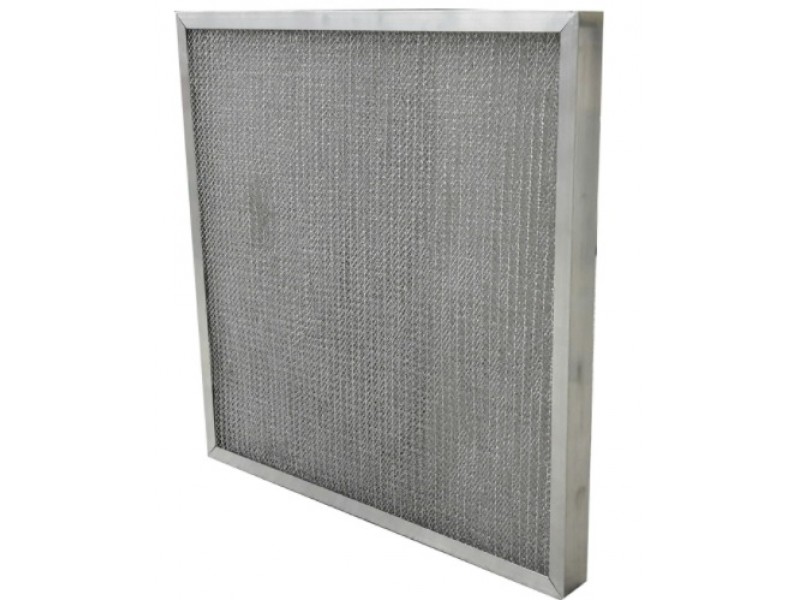

-800x600.jpg "CLEANPAK Pre Filter (Electrostatic)")
Characteristics and materials of construction
- Media : Poly-prophyrene fiber
- Separator : Poly-prophyrene fiber
- Frame : Aluminium Stainless steel and Galvanize steel
- Face Guard : Stainless steel, Galvanize steel
- Efficency : EN779 : G4 ASHRAE 52.2 dust spot efficiency 90%
- Grade : G4 follow EN779 Standard
- Test : 100% individually tested according to EN779
- Pressure drop : 25.4 mmAq
- Temperature : 65Cº
- Electrostatic air filter has a special method capturing dust when air passes through the multi layered poly-propylene media, they generate strong static charges so particles of dust are attached to surface
- also this filter is designed to wash and clean
Specification
Model | Dimensions (mm) | Efficiency EN779 WEIGHT ARRESTANCE | PRESSURELOSS(mmAq) | AIRFLOW CAPACITY (cmm) | |
| INITIAL | FINAL | ||||
| PS-G3-2000A | 592x592x25 | G4 90% | 8.5 | 25.4 | 56 |
| PS-G3-1000A | 592x287x25 | G4 90% | 8.5 | 25.4 | 28 |
| PS-G3-2000B | 592x592x50 | G4 90% | 9.5 | 25.4 | 56 |
| PS-G3-1000B | 592x287x50 | G4 90% | 9.5 | 25.4 | 28 |
PERFOMANCE CURVE (Initial pressure loss & Face velocity)
CLEANPAK Pre Filter (Electrostatic)
- Product Code: CLEANPAK Pre Filter
- Availability: In Stock
-
0.00 บาท
- Ex Tax: 0.00 บาท
