Product Decriptions:
Function:Every contact made between a person's shoe grounder or
conductive footwear and an ESD floor establishes an electrical
connection to ground,whether the person is at rest or in motion.Any
static charge that has built up on the body is instantly drained
to ground by conduction.Static charge travels from person's body
through the shoe strap pr too wear to the conductive medium,and then
moves vertically down into the conductive adhesice layer and finally
to a copper grounding strip attached most comminly your electriacl
ground point.
Specifications:
ITEM | STANDARD | TEST VALUE |
Surface Resistance | IEEC1340-41/SJ/T11236-2001 | 10E6-10E9 |
Volume Resistance | IEEC1340-41/SJ/T11236-2001 | 10E6-10E9 |
Decay Time(5KV-500V) | MIL-B-81705B/GJB2606-1996 | ﹤0.25S |
Size (packed by mat ) | Length60cm*Width60cm*Thickness2mm(or 3 mm) | |
Size (packed by roll) | Length20m*Width1.5m*Thickness2mm(or 2.5mm) |

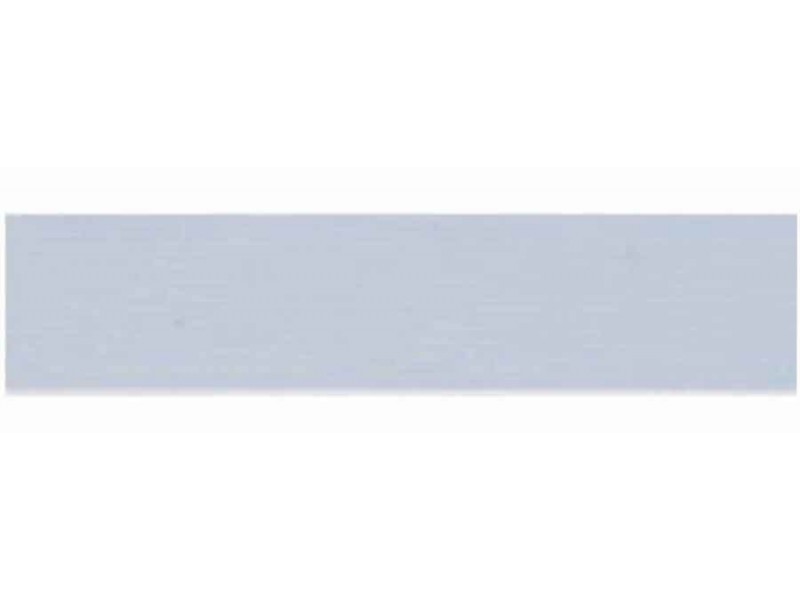

ESD PVC Floor model CP0224
- รหัส/รุ่น: CP0224
- สถานะสินค้า: มีสินค้า
-
0.00 บาท
- ราคาไม่รวมภาษี: 0.00 บาท
